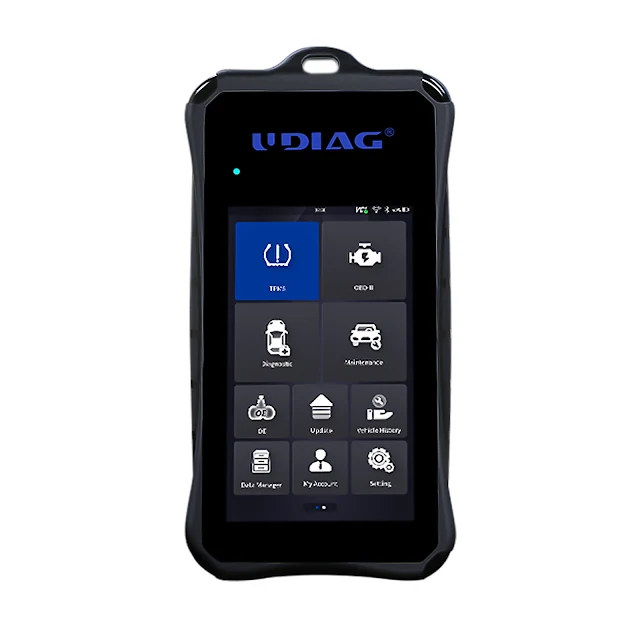

X-20 Intelligent TPMS Servicing & Scan Tool

Function:

Professional in activating and decoding universal TPMS sensors more than 20 brands, as well as programming UDIAG TPMS sensors and diagnosing
the original car tire pressure monitoring system.
Wireless diagnostics on all available car system modules, read and clear codes, view freeze frame, check live data and ECU information, etc.
Work on CAN FD and DOIP protocols.
Integrate the most useful 10 service functions: ABS Bleeding, BRT, TPS, DPF, EPB, Injector, Oil Reset, SAS, Transmission Adaptation and Change Tire Size.
Life time free update.

Maintenance function：

ABS Bleeding
BRT
TPS
DPF
EPB
Injector
Oil Reset
SAS
Transmission Adaptation
Change Tire Size

Model	X-20
Screen	5.5” TFT Capacitive LCD screen; 720*1280 pixel
Operation System	Android 9.0
Processor	Quad-core, 1.3GHz
Memory	2GB
SSD Hard drive	32GB
Communication interface	Built-in WlFI 802.11 b/g/n Wireless LAN
	USB2.0 OTG/standard USB 2.0 HOST
	Bluetooth specification v2.1+EDR; Bluetooth 4.0 Low Energy(LE)(10-20 m)
Built-in Battery	5000mAh, Lithium-polymer battery, chargeable via 5V USB power supply
Working Temperature	-10 to 70°C
Storage Temperature	-20 to 80°C
Operating Humidity	5%-95% Non-Condensing
Dimensions	19510025mm(LWH)
Weight	0.87kg (Main unit)
