The H6W2 is an advanced automotive diagnostic system with an 8-inch LCD display. Designed for mechanics and car maintenance shops, it runs on Android, offering extensive OEM vehicle coverage. With a sleek design and new interaction interface, it simplifies diagnostics! #Automotive #Diagnostics #Tech #Mechanics #CarCare
Description
● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-cores processor with 64 GB storage.● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope.
● V113 wireless vehicle communication interface supports the latest communication protocols, including CANFD and DoIP.
● Full system diagnostics for U.S., Asian, European, and Chinese vehicles.
● Automatic detection: Scan all available systems with Topology Mapping.

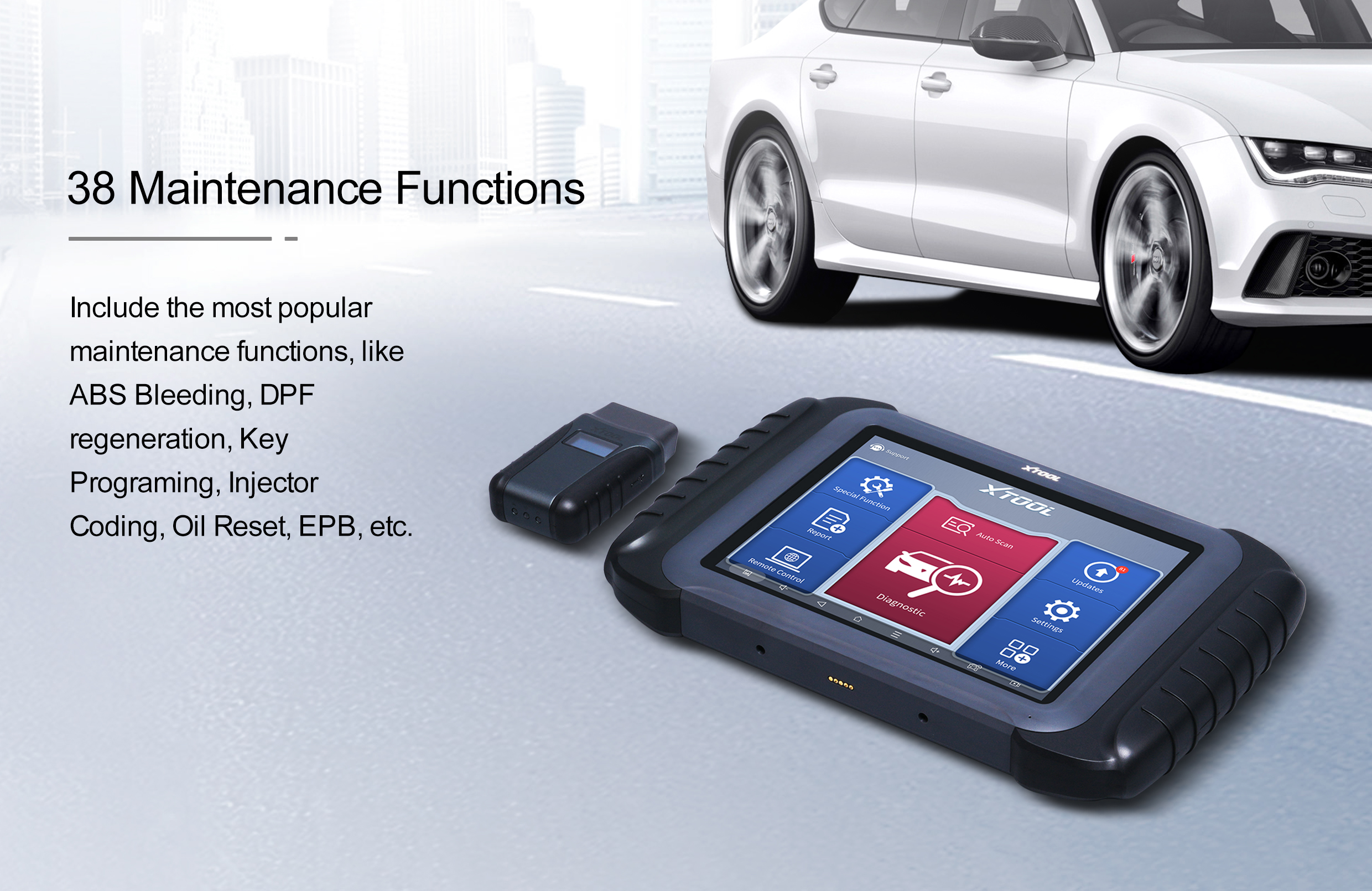

● 38 popular relearn and reset services.

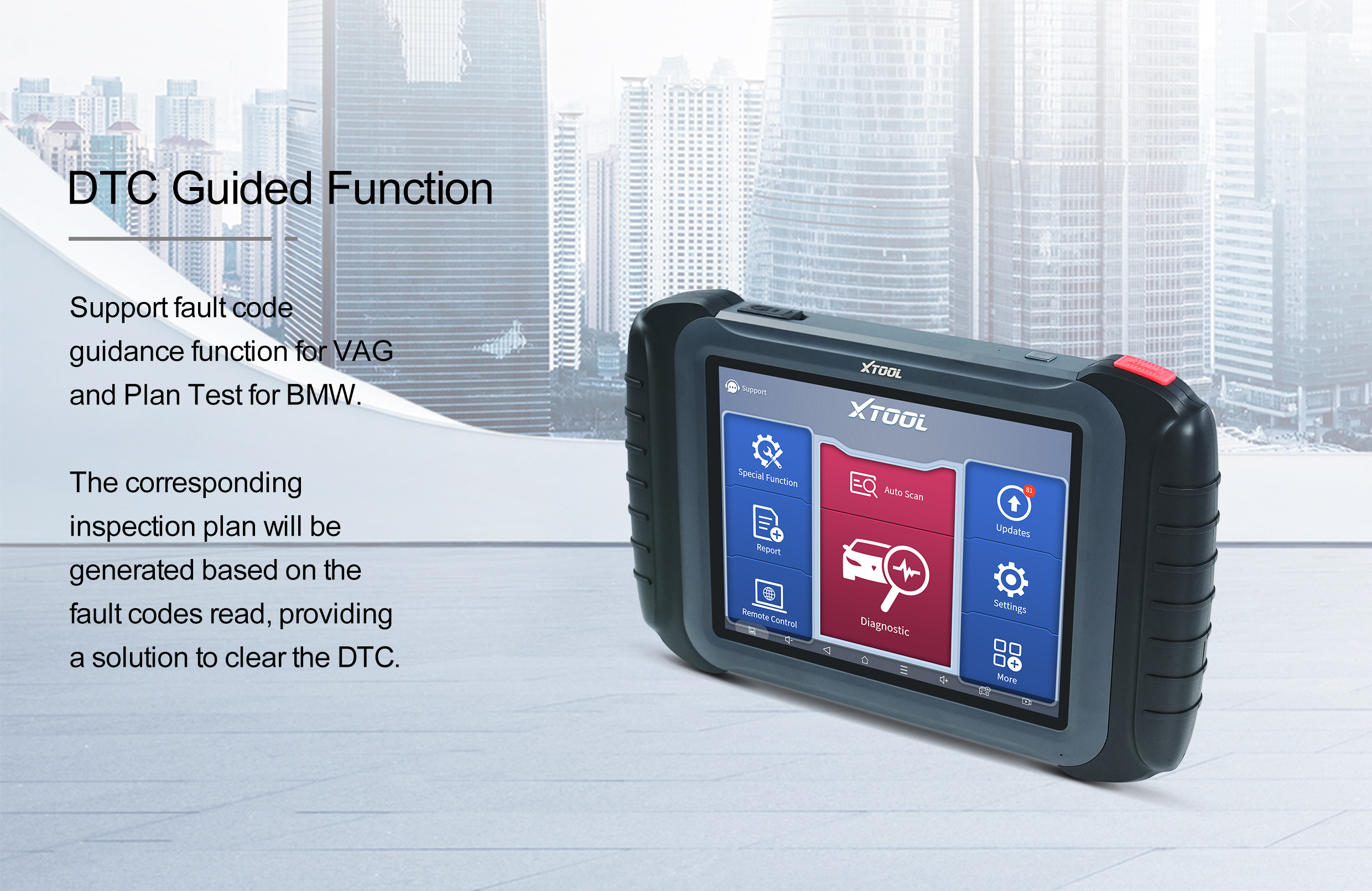

● Supports Read/erase codes, view freeze frame and live data.

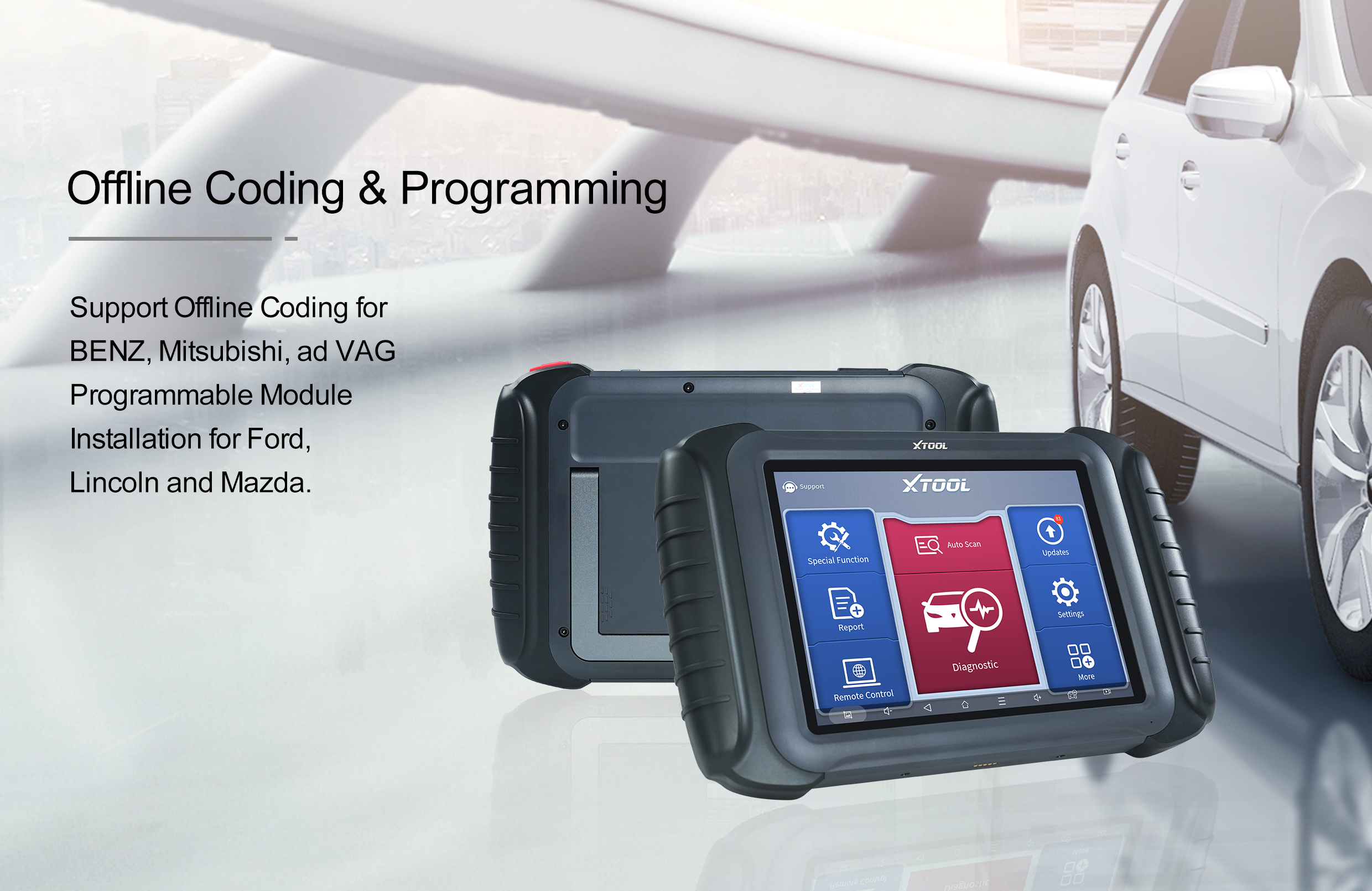

● Perform programmable module installation (PMI) for Ford, Mazda.
Parameters
Operating System：Android 10.0Communication Method：Wi-Fi
Processor：4 Core 1.50GHz
Connectivity：Type-C
Memory：4G+64G
Working Voltage：9-36V
Display：8-inch, 1024×768P
Battery：5000mAh, 7.3V
Camera：8.0 Megapixel, AF with Flashlight
Working Temperature：-10 to 50℃
Auto Input/Output：Microphone, Speaker
Storage Temperature：-40 to 60℃
Dimension (L×W×H):：273.0×174.0×33.7 mm
Compatible Protocol：CANFD， DoIP
Accessories
Packing listCertificate of Quality
Tool Case
Color Carton
Quick Start Guide
Host group
Power Adapter EUPower Adapter UK
UsB Cable (Type-Cto Type-A)
VCI Box
Tablet
Cigarette lighter Power Plug
USB Cable (Type-C to Type-C)
Power Adapter Us
Test Connectors
HYUNDAIKIA-10 ConnectorSUZUK1-3 Connector
FIAT-3 Connector
AUDL-4 Connector
GWDAEWOO-12 Connector
BMW-20 Connector
HONDA-3 Connector
MITSUBISHI-12+16 Connector
CITROEN-2 Connector
MAZDA-17R Connector
BENZ-38 Connector
OBD2-16 Connector
KIA-20 Connector
TOYOTA-17 Connector
DB15 M to OBD2-16 F Adapter
OBD Exend Cable
UNIVERSAL-3 Connector
NISSAN-14 Connector
H6 Pro 3  | H6W2  | H6E 2  | |
|---|---|---|---|
Hardware | |||
Tablet Model | P102 | P807 | P807 |
Processor | 2.2GHzA73×4+1.8GHzA53×4 | Quad-core processor 1.5GHz | Quad-core processor 1.5GHz |
OS | Android 10 | Android 10.0 | Android 10.0 |
Storage (RAM+ROM) | 8+128G | 4+64G | 4+64G |
Display | 10.1 inch 1920*1200 | 8 inch 1024*768 | 8 inch 1024*768 |
Camera | 8MP rear | 8MP rear | 8MP rear |
Connectivity | USB Type-C VGA | USB Type-C | USB Type-C VGA |
Battery | 6400 mAh，7.2V | 5000mAh, 7.3V | 5000mAh, 7.3V |
WiFi | WiFi 2.4/5 Ghz | Y | Y |
Bluetooth | BLE 5.0 | BLE 5.0 | BLE 5.0 |
VCI/Protocol | |||
Communication Method | Wi-Fi USB | Wi-Fi | Wired |
Wireless VCI Box | V208 | V104 | N |
FCA SGW License | Y | N | N |
CAN FD | Y | Y | Y |
DoIP | Y | Y | Y |
Software | |||
Auto VIN | Y | Y | Y |
Prescan/Postscan | N | N | N |
Topology mapping | Y | Y | Y |
OBD full function | Y | Y | Y |
Read ECU information | Y | Y | Y |
Read code | Y | Y | Y |
Clear code | Y | Y | Y |
Read live data | Y | Y | Y |
Read freeze frame | Y | Y | Y |
Actuator test | Y | Y | Y |
Service Resets | 42 | 38 | 38 |
BMW PLAN TEST | Y | N | N |
Offline coding | Y | Y | Y |
Offline programming | Y | Y | Y |
Online coding | Y | N | N |
Online Programming | Y | N | N |
Compatible Module | |||
XV100 Videoscope | Optional | Optional | Optional |
XV200/210 Videoscope | Optional | Optional | Optional |
EEPROM Adapter | Y | Y | Y |
KC501 | Y | Y | Y |
KC100 | Y | Y | Y |
Warranty | |||
Free Update | 3 YEARS | 3 YEARS | 3 YEARS |
Warranty | 2 YEARS | 2 YEARS | 2 YEARS |
