Description
● 10.1'Touchscreen (1920 x 1200) / Android 10.0● 2.2GHz+1.8GHz Octa-core Processor /8+128GB Memory
● Dual Wi-Fi Connection
● 6400mAh - 6hrs Continuous Use / 8MP Rear Camera
● New VCI Protocols: DoIP/CAN FD
● Coverage includes U.S., European, Asian and Chinese electric, gas and diesel, and hybrid vehicles

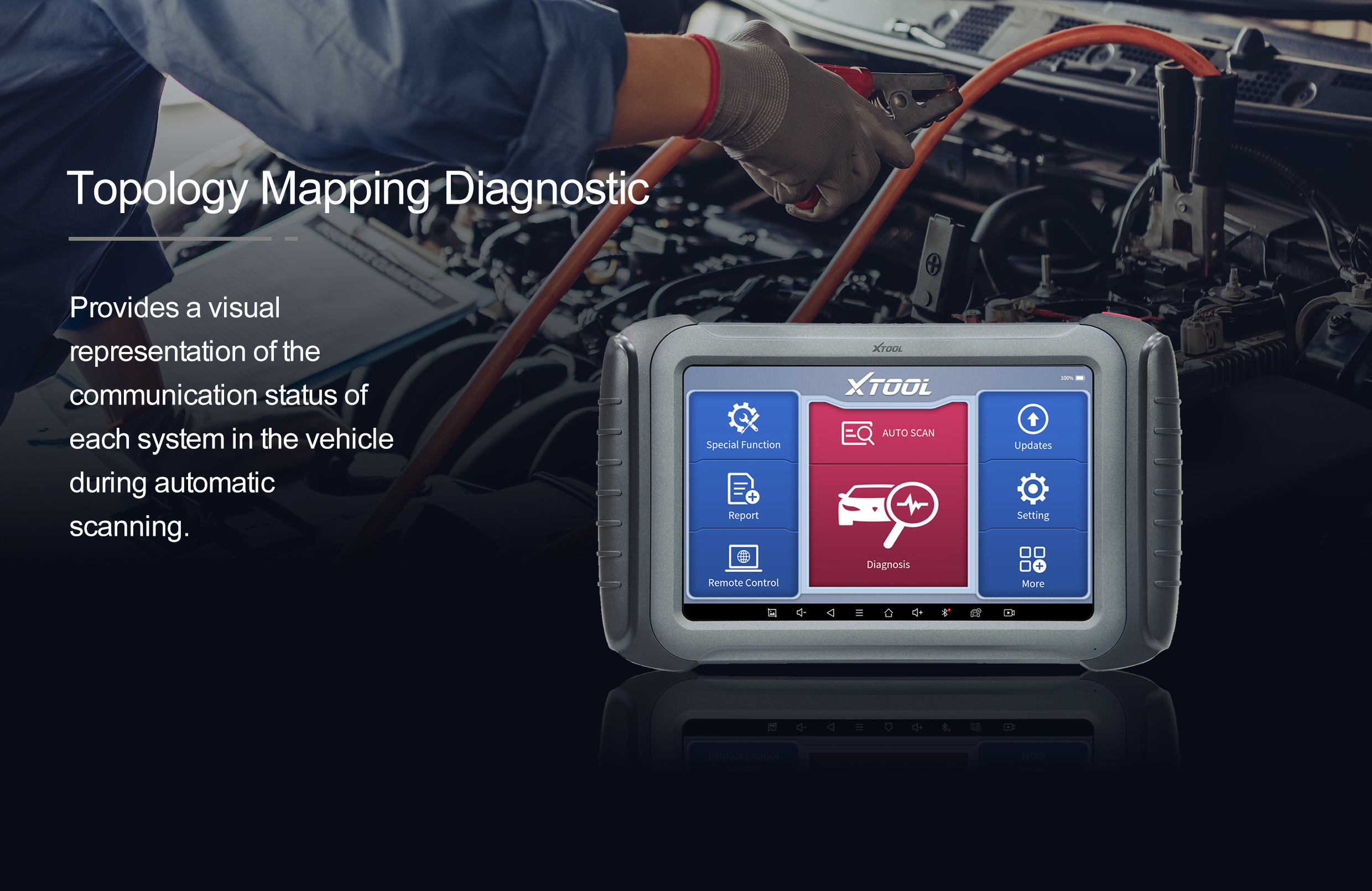

● Topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)

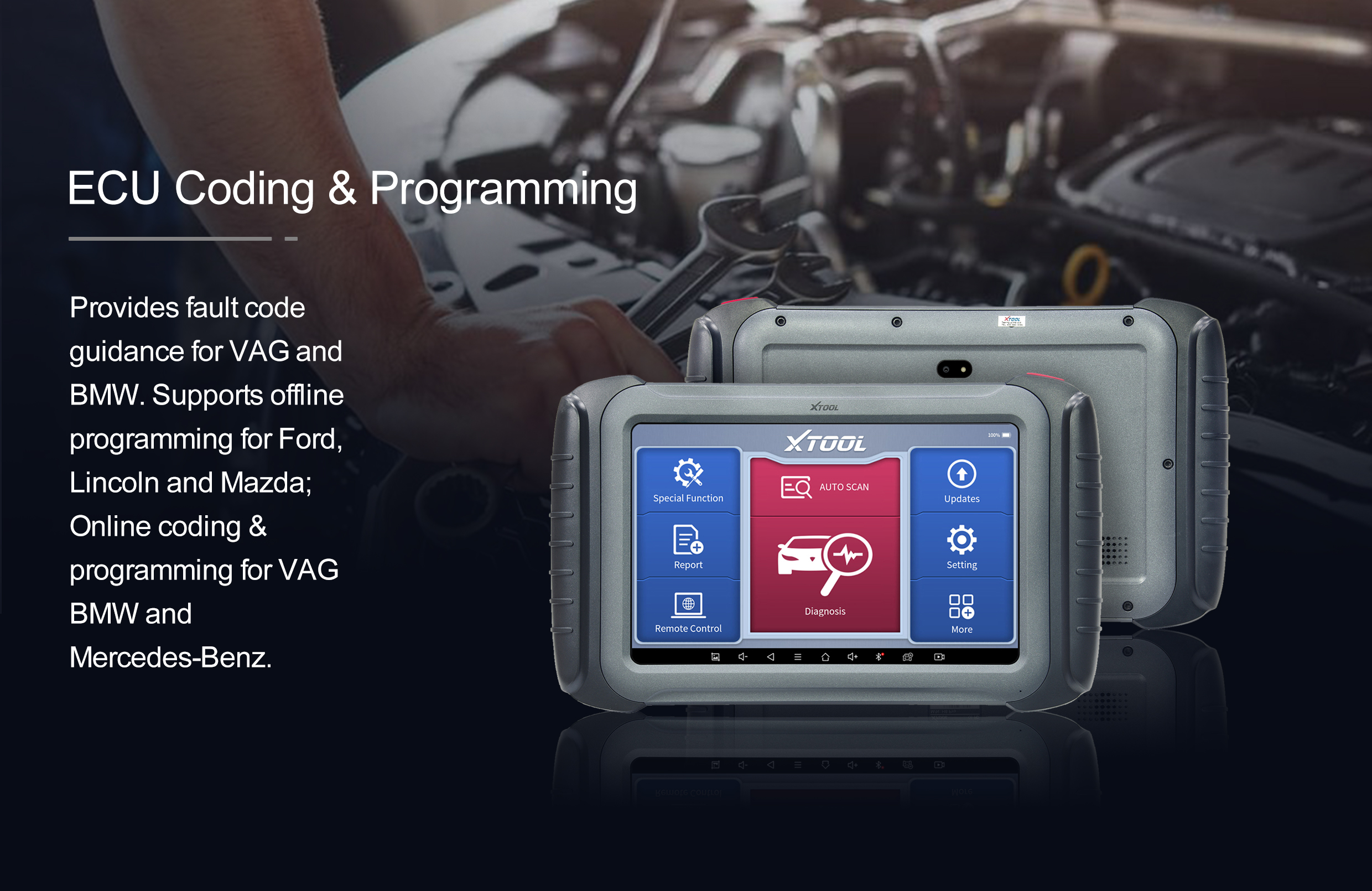

● Provides fault code guidance for VAG and BMW.
● Supports offline programming for Ford, Lincoln and Mazda; Online coding & programming for VAG BMW and Mercedes-Benz
● Perform ADAS Systems Calibrations for camera and radars
● Includes OBDI Connectors, and charging dock
● 2YR Warranty & 3 YR Software Subscription
Parameters
Operating System：Android 10.0Processor：2.2GHz+1.8GHz Octa-core Processor
Memory：8G+128G
Display：10.1-inch, 1920×1200P
Camera：8.0 Megapixel, AF with Flashlight
Auto Input/Output：Microphone, Speaker
Dimension (L×W×H):：309.2×188.9×34.9 mm
Communication Method：Wi-Fi, USB
Connectivity：Type-C
Working Voltage：9-32V
Battery：6400 mAh, 7.3V
Working Temperature：0 to 40℃
Storage Temperature：-10 to 50℃
Compatible Protocol：CANFD, DoIP
Accessories
Color CartonPacking List
Certificate of Quality
Tool Case
Quick Start Guide
Main Units
TabletVCI Box
Type C to Type-A Data Cable
Type C to Type-B Data Cable
Type C to Type-C Charger Cable
PD Supply Charging Adapter US
Charging Adapter EU
Charging Adapter UK
Cigar Lighter Power Plug
Test Connectors
DB15 Main CableOBD II-16
HONDA-3
BMW-20
BENZ-14
BENZ-38
TOYOTA-17
MAZDA-17R
KIA-20
HYUNDAI/KIA-10
NISSAN-14
GM/DAEWOO-12
UNIVERSAL-3
SUZUKI-3
FIAT-3
CITROEN-2
AUDI-4
MITSUBISHI-12+16
H6 Pro 3  | H6W2  | H6E 2  | |
|---|---|---|---|
Hardware | |||
Tablet Model | P102 | P807 | P807 |
Processor | 2.2GHzA73×4+1.8GHzA53×4 | Quad-core processor 1.5GHz | Quad-core processor 1.5GHz |
OS | Android 10 | Android 10.0 | Android 10.0 |
Storage (RAM+ROM) | 8+128G | 4+64G | 4+64G |
Display | 10.1 inch 1920*1200 | 8 inch 1024*768 | 8 inch 1024*768 |
Camera | 8MP rear | 8MP rear | 8MP rear |
Connectivity | USB Type-C VGA | USB Type-C | USB Type-C VGA |
Battery | 6400 mAh，7.2V | 5000mAh, 7.3V | 5000mAh, 7.3V |
WiFi | WiFi 2.4/5 Ghz | Y | Y |
Bluetooth | BLE 5.0 | BLE 5.0 | BLE 5.0 |
VCI/Protocol | |||
Communication Method | Wi-Fi USB | Wi-Fi | Wired |
Wireless VCI Box | V208 | V104 | N |
FCA SGW License | Y | N | N |
CAN FD | Y | Y | Y |
DoIP | Y | Y | Y |
Software | |||
Auto VIN | Y | Y | Y |
Prescan/Postscan | N | N | N |
Topology mapping | Y | Y | Y |
OBD full function | Y | Y | Y |
Read ECU information | Y | Y | Y |
Read code | Y | Y | Y |
Clear code | Y | Y | Y |
Read live data | Y | Y | Y |
Read freeze frame | Y | Y | Y |
Actuator test | Y | Y | Y |
Service Resets | 42 | 38 | 38 |
BMW PLAN TEST | Y | N | N |
Offline coding | Y | Y | Y |
Offline programming | Y | Y | Y |
Online coding | Y | N | N |
Online Programming | Y | N | N |
Compatible Module | |||
XV100 Videoscope | Optional | Optional | Optional |
XV200/210 Videoscope | Optional | Optional | Optional |
EEPROM Adapter | Y | Y | Y |
KC501 | Y | Y | Y |
KC100 | Y | Y | Y |
Warranty | |||
Free Update | 3 YEARS | 3 YEARS | 3 YEARS |
Warranty | 2 YEARS | 2 YEARS | 2 YEARS |
