Gasoline Diagnosis Tool
H6Elite 2 is an automotive smart diagnostic system with 8 8-inch LCD display, which is designed for mechanics, electricians, and car maintenance shops. Vehicles covering electric, gasoline, and diesel, and hybrid vehicles in the U.S., Europ,e and Asia. It also supports full system diagnostics, including reading ECU version information, reading fault codes, live data, and freeze frames
Description
● 8-inch, 1024x768 high-resolution touchscreen tablet, 4-cores processor with 64 GB storage.● Long-lasting 5000mAh rechargeable battery, 8 MP rear camera, equipped with the videoscope.
● Supports the latest communication protocols, including CANFD and DoIP.
● Full system diagnostics for U.S., Asian, European, and Chinese vehicles.
● Automatic detection: Scan all available systems with Topology Mapping.

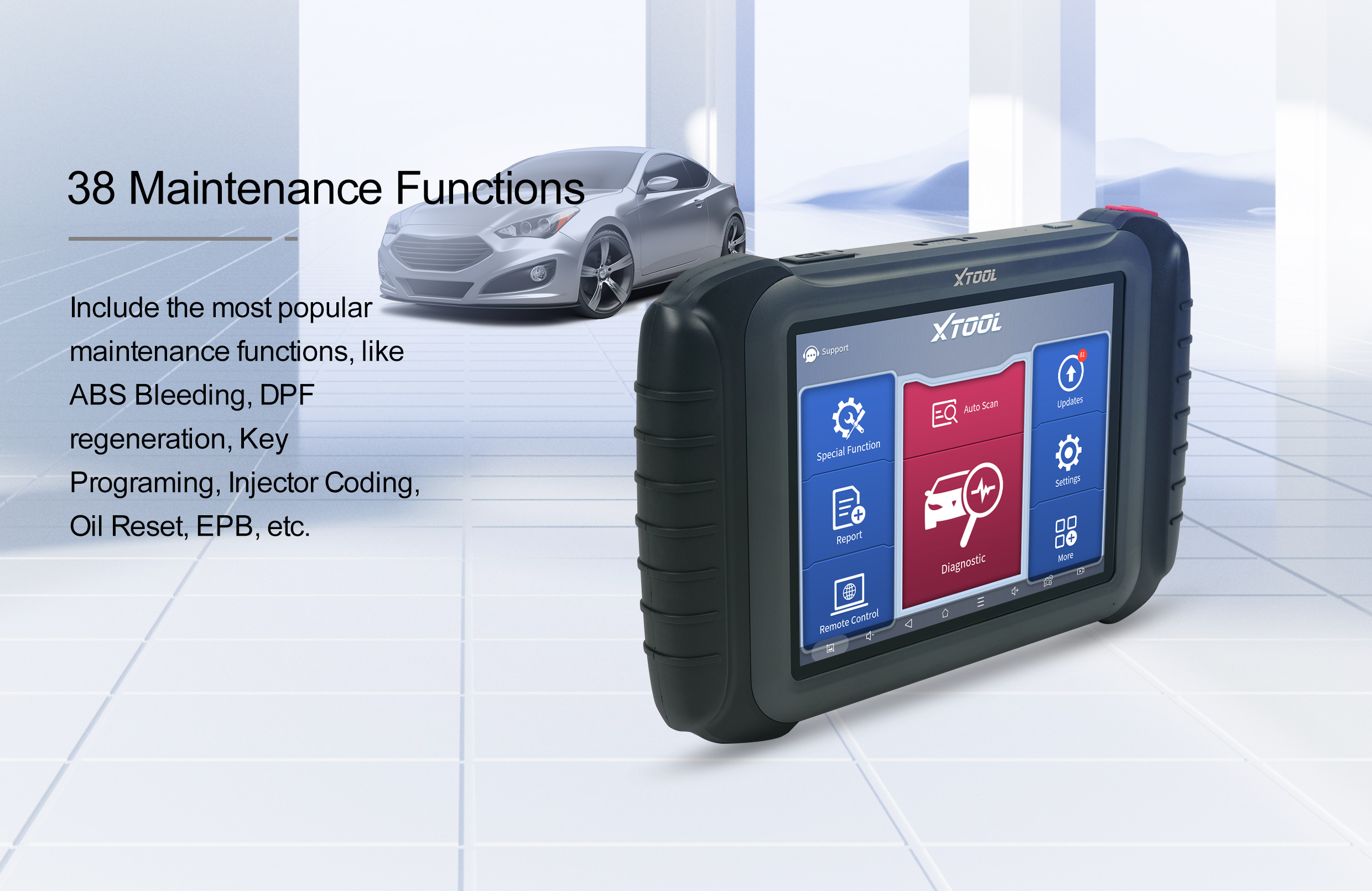

● 38 popular relearn and reset services.
● Supports Read/erase codes, view freeze frame and live data.

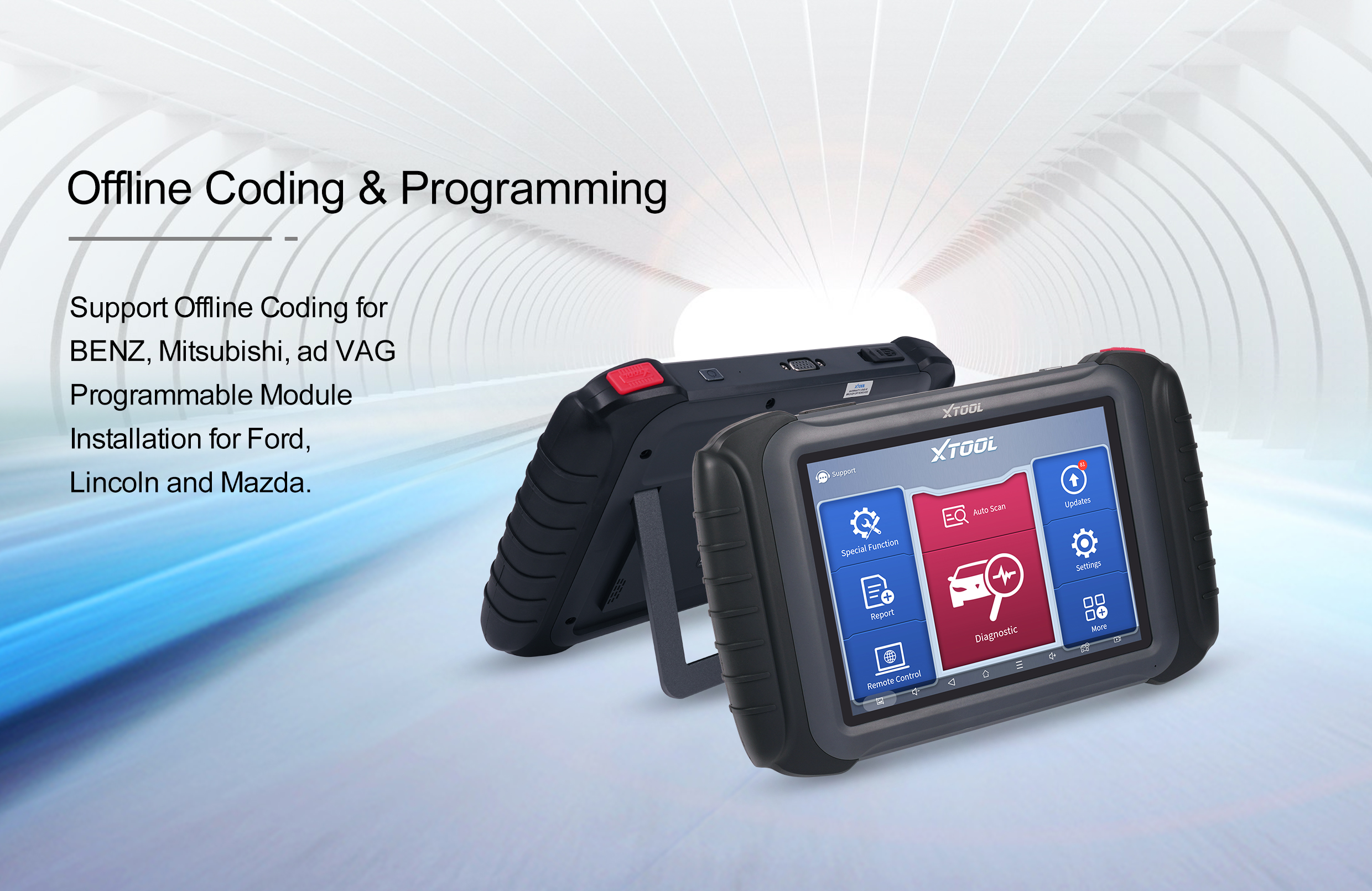

● Perform programmable module installation (PMI) for Ford, Mazda.
Parameters
Operating System：Android 10.0Communication Method：Wired
Processor：4 Core 1.50GHz
Connectivity：Type-C
Memory：4G+64G
Working Voltage：9-36V
Display：8-inch, 1024×768P
Battery：5000mAh, 7.3V
Camera：8.0 Megapixel, AF with Flashlight
Working Temperature：-10 to 50℃
Auto Input/Output：Microphone, Speaker
Storage Temperature：-40 to 60℃
Dimension (L×W×H):：273.0×174.0×33.7 mm
Compatible Protocol：CANFD， DoIP
Accessories
Certificate of QualityTool Case
Packing List
Quick Start Guide
Color Carton
Host group
USB Cable (Type-C to Type-A)USB Cable (Type-C to Type-C)
Power Adapter UK
Power Adapter EU
Cigarette Lighter Power Plug
Power Adapter US
Tablet
Test Connectors
AUDI-4 ConnectorUNIVERSAL-3 Connector
HYUNDAIKIA-10 Connector
HONDA-3 Connector
MITSUBISHI-12+16Connector
KIA-20 Connector
FIAT-3 Connector
TOYOTA-17 Connector
BENZ-38 Connector
CITROEN-2 Comnector
SUZUKI-3 Connector
DB15 to VGA Main Cable
MAZDA-17R Connector
BMW-20 Connector
NISSAN-14 Connector
GM/DAEWOO-12 Connector
OBD2-16 Connector
H6 Pro 3  | H6W2  | H6E 2  | |
|---|---|---|---|
Hardware | |||
Tablet Model | P102 | P807 | P807 |
Processor | 2.2GHzA73×4+1.8GHzA53×4 | Quad-core processor 1.5GHz | Quad-core processor 1.5GHz |
OS | Android 10 | Android 10.0 | Android 10.0 |
Storage (RAM+ROM) | 8+128G | 4+64G | 4+64G |
Display | 10.1 inch 1920*1200 | 8 inch 1024*768 | 8 inch 1024*768 |
Camera | 8MP rear | 8MP rear | 8MP rear |
Connectivity | USB Type-C VGA | USB Type-C | USB Type-C VGA |
Battery | 6400 mAh，7.2V | 5000mAh, 7.3V | 5000mAh, 7.3V |
WiFi | WiFi 2.4/5 Ghz | Y | Y |
Bluetooth | BLE 5.0 | BLE 5.0 | BLE 5.0 |
VCI/Protocol | |||
Communication Method | Wi-Fi USB | Wi-Fi | Wired |
Wireless VCI Box | V208 | V104 | N |
FCA SGW License | Y | N | N |
CAN FD | Y | Y | Y |
DoIP | Y | Y | Y |
Software | |||
Auto VIN | Y | Y | Y |
Prescan/Postscan | N | N | N |
Topology mapping | Y | Y | Y |
OBD full function | Y | Y | Y |
Read ECU information | Y | Y | Y |
Read code | Y | Y | Y |
Clear code | Y | Y | Y |
Read live data | Y | Y | Y |
Read freeze frame | Y | Y | Y |
Actuator test | Y | Y | Y |
Service Resets | 42 | 38 | 38 |
BMW PLAN TEST | Y | N | N |
Offline coding | Y | Y | Y |
Offline programming | Y | Y | Y |
Online coding | Y | N | N |
Online Programming | Y | N | N |
Compatible Module | |||
XV100 Videoscope | Optional | Optional | Optional |
XV200/210 Videoscope | Optional | Optional | Optional |
EEPROM Adapter | Y | Y | Y |
KC501 | Y | Y | Y |
KC100 | Y | Y | Y |
Warranty | |||
Free Update | 3 YEARS | 3 YEARS | 3 YEARS |
Warranty | 2 YEARS | 2 YEARS | 2 YEARS |
